Place of Origin:
Guangdong, China
Brand Name:
Reliago
Model Number:
S10-ESCO

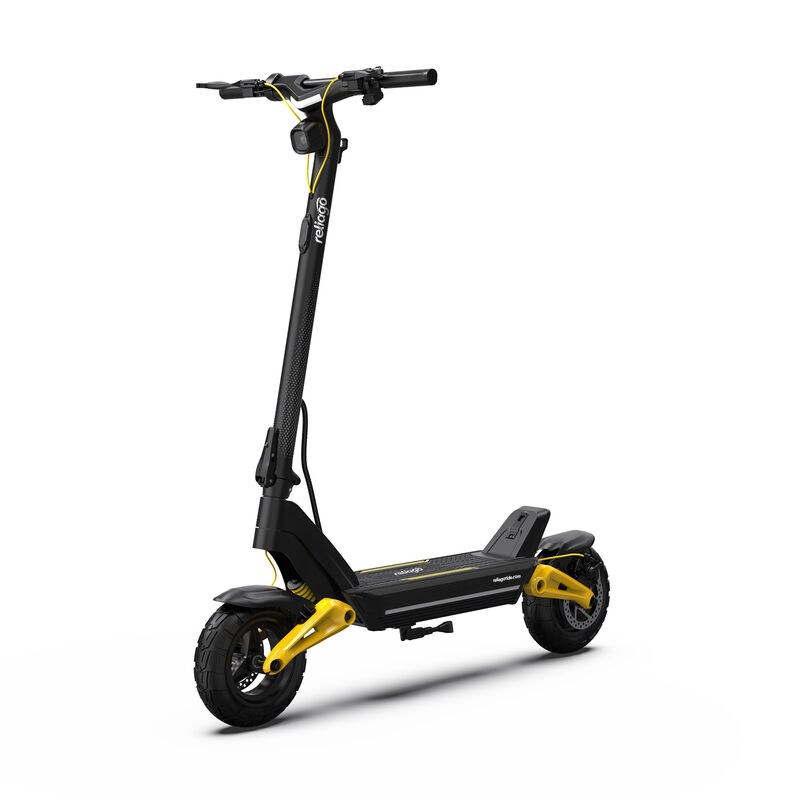

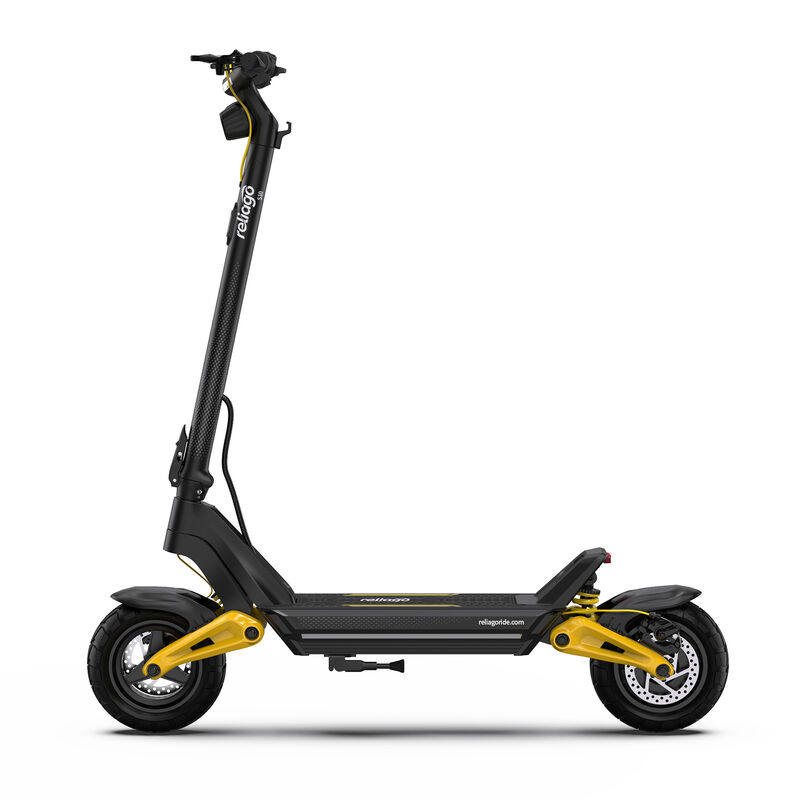

The OOTD S10 Foldable Electric Scooter is designed for adults who need a reliable, comfortable, and practical urban transportation solution.
Powered by a 48V 20Ah lithium battery and a powerful motor system with 1400W peak power, the S10 delivers a smooth riding experience with up to 70 km range.
Its foldable aluminium alloy frame, 10-inch tires, and integrated LED lighting system make it ideal for commuting, travel, and everyday mobility.
| Body Material & Dimension | Color of eScooter | Black+Yelow | ||||
| Material | Aluminum Alloy | |||||
| Folding Dimension(mm) | 210*620*545mm_ | |||||
| Unfold Dimension | 1210*620*1300mm | |||||
| Width of Deck(mm) | 190mm | |||||
| Deck Bottom Height | 160mm | |||||
| Weight | Suitable Rider Height (cm) | 150-200cm | ||||
| Net Weight | 28kg | |||||
| Max of Loading(kg) | ≤120kg | |||||
| Performance | Max.of Speed(km/h) | 25km/h | ||||
| Mileage (km) | 70km | |||||
| Suitable Terrain | Flat hardened pavement, flat asphaltpavement, 15% slope, and steps nohigher than 1cm. | |||||
| Working Temp | 0°C--45℃ | |||||
| IP Rating | IPX4 | |||||
| Motor | Peaking Power | 1400 | ||||
| Rating Voltage | 48V | |||||
| Rating Current | 22A | |||||
| Peaking Torque | ≤29 | |||||
| No-load Curent | ≤1.5A | |||||
| No-load rotation | 1010 rpm | |||||
| Dlameter of Front wheel | 10" | |||||
| Diameter of Rear wheel | 10" | |||||
| Max.of load(Motor) | ≤100KG | |||||
| Battery | Type of Cellis | 18650-Cell | ||||
| Battery Capacity(mAh) | 20Ah | |||||
| Rating Voltage | 48V | |||||
| Input Voltage | 54.6V | |||||
| Inteligent BMS | Balance/Over-charging/Over-discharging/Over-current short-circuit Protection | |||||
| Charger | Rating Power | 109.2W | ||||
| Rating Voltage | 00-240V AC 50/60Hz 3A | |||||
| Rating Current | 2A | |||||
| Rating Output Voltage | 54.6V | |||||
| Head light | Working Voltage | 12V | ||||
| Working Current | 213mA | |||||
| Side ambient Lighting | Working Voltage | 36/48V | ||||
| Working Curent | 137mA | |||||
| Front ambient Lighting | Working Voltage | 12V | ||||
| Working Curent | 135mA | |||||
| Tail-light | Working Voltage | 12V | ||||
| Working Current | 130mA | |||||
Equipped with a high-capacity 48V 20Ah lithium battery, the S10 provides extended riding distance and stable power output.
The high-performance motor delivers smooth acceleration and reliable power for urban riding.

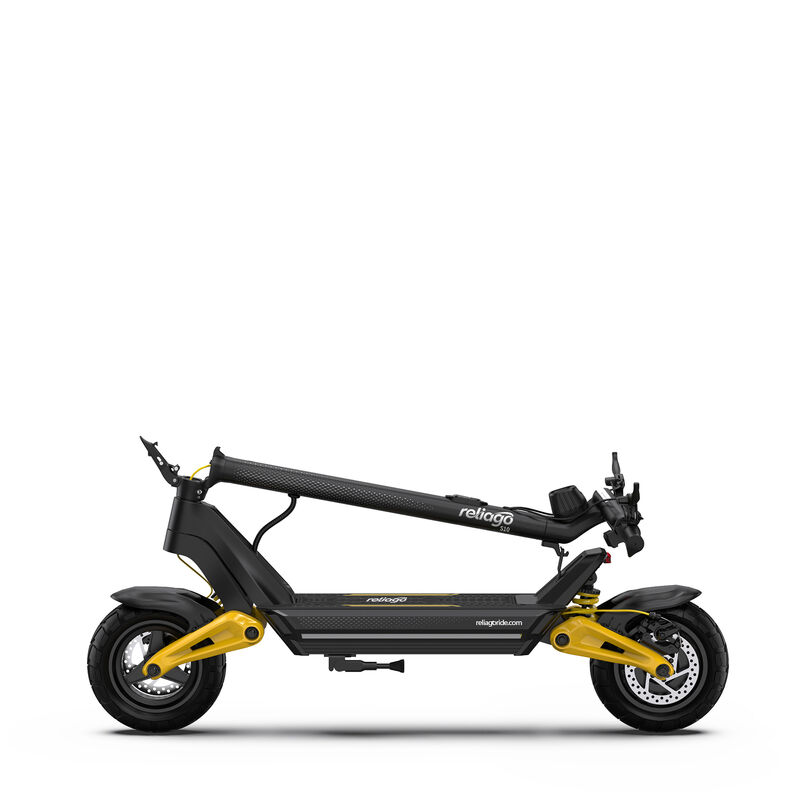

The lightweight aluminium alloy folding structure allows easy storage and transportation.
Large 10-inch tires provide improved stability and riding comfort.
Integrated lighting system improves visibility and safety during night riding.
Perfect for daily commuting, office travel, and urban transportation.
A convenient solution for subway stations, campuses, and business districts.
Enjoy comfortable rides in parks and residential areas.

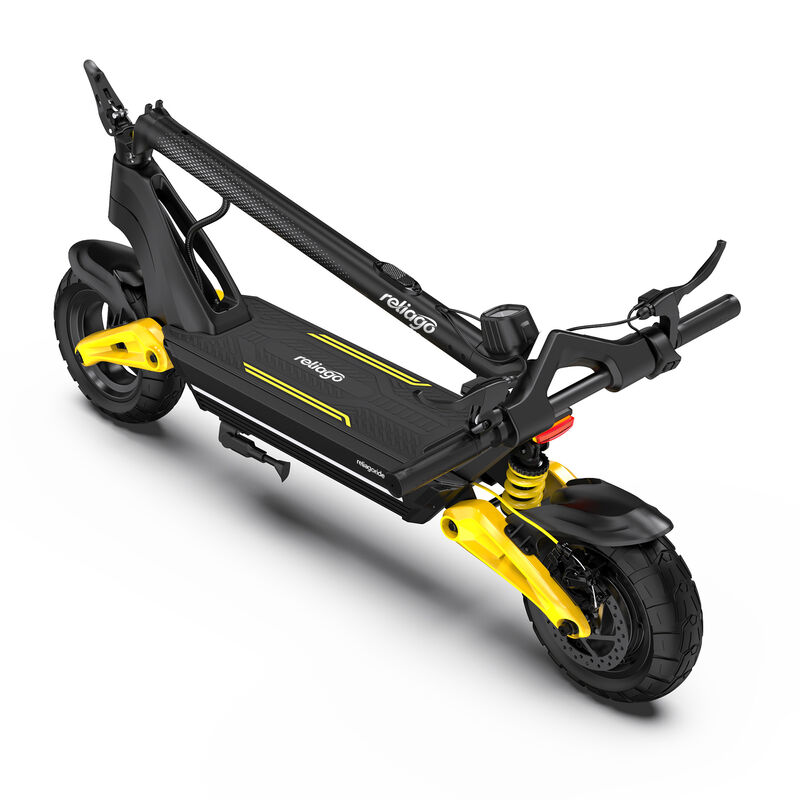

The foldable design makes it easy to transport and store.
Q1: What is the maximum range of OOTD S10?
The maximum riding range is up to 70 km per charge depending on rider weight, speed, terrain, and riding conditions.
Q2: What is the maximum speed?
The maximum speed is 25 km/h.
Q3: Is OOTD S10 foldable?
Yes. The scooter features a folding aluminium alloy frame.
Q4: What battery does it use?
It uses a:48V 20Ah 18650 lithium battery pack with intelligent BMS protection.
Q5: Can it ride in rain?
The scooter has IPX4 water resistance, suitable for light rain and splashes.
